Adjustable Differential Pressure Switches

Adjustable Differential Pressure Switches

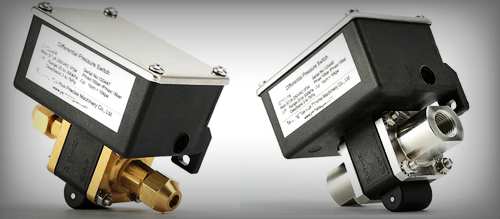

  • Type: GE-511A Brass Type; GE-511C Stainless Steel Type

  • Easy Install

  • Dirt Resistant

  • CE marked
  • Product description: Sterile Stainless Steel or Brass DP switches, similar as UE 24-01 series and Dywer DXW-11-153 series differential pressure switch, could replace them with a very low price, to save the cost.
  • ISO9001 ISO14001 ISO45001 CE ATEX




This differential pressure switch is similar as UE 24-01 series and Dywer DXW-11-153 series differential pressure switch, could replace them with a very low price, to save the cost for the end user.

The pressure differential switch will react to pressure difference of two points, If the pressure between these points is higher than the pressure setpoint, then it "reacts". The GE-511 Differential Pressure switch adpot stainless steel material or brass material, smart structure, easy install, easy adjust.stainless steel differential pressure switches

Specification:
* Max Voltage 250V, Max Current 3A
* Output: Single SPDT Switch
* Connection: 1/4 SAE nut; G1/4" Female
* Material: SS304 or Brass
* Max Static Pressure: 15bar
* Repeatability: 1% Span
* Accuracy: 0.001Mpa
* Easy External Adjustment

* NEMA 4 Enclosure, Watertight Conduit Connector

* GE-511A Brass Type with 1/4 SAE nut for 6mm copper pipe, other connection thread could be customized

* GE-511C Stainless Steel Type with G1/4" female thread, NPT1/4" could be customized


Type

Pressure Setpoint Range

Switching Differential Set To

GE-511A/C-100

15~100k Pa

6k Pa

GE-511A/C-200

20~200k Pa

10k Pa

GE-511A/C-300

30~300k Pa

15k Pa
